Brechin Sparks provides expert, BS 7671-compliant EV charger installations for homes, commercial properties, and agricultural premises across Brechin and Angus. Speak directly with James Leslie to assess your electrical supply, select the right smart charger, and get a clear upfront quote before any work begins.
Free quoteTell James what you need, even if you’re not sure what’s wrong.
Replies within an hour, 8am–6pmOut-of-hours emergency? Call 01356 235858
Local to Brechin, Angus, Scotland
Brechin Sparks is James Leslie, working from a base in Brechin and covering the DD9 postcode area, Montrose, Forfar, Arbroath, Edzell and Dundee within an approximate 40-mile radius.
One point of contact for the supply assessment, the installation, the certificate and the DNO paperwork. If your board needs a consumer unit upgrade to take a dedicated EV circuit, James explains that before the work is agreed.
“James was very polite and sent over the quote immediately after the call and came out the same day in the early evening.”
“He couldn't of been more helpful and still only took what he quoted for, even though it was a bigger job than expected. Definitely recommend.”
“Arrived within an hour of my call, as he said he would. Fixed the problem same afternoon, and rate was extremely reasonable!”
“They also give decent price for the job and the work done will be using James again, he is also very polite and very helpful too me.”
“Fast response during a weekend, put in a temporary fix so we got power back. Excellent service.”
“Very professional and courteous. Highly recommend him.”
Review summaries from the Google profile. Read them in full on Google ↗
Chargepoint installation for homes, commercial properties and agricultural premises, from a base in Brechin serving Montrose, Forfar, Arbroath and surrounding rural communities up to a 40-mile radius.
The circuit is designed, tested and recorded against the 18th Edition wiring regulations, with an Electrical Installation Certificate issued and the required DNO application or notification completed.
40 years of electrical engineering experience across military, municipal and private sectors. James served as an RAF electrical engineer and as a retained firefighter at Brechin Fire Station — a background that matters for continuous high-load circuits.
Public liability cover across domestic, commercial and agricultural properties, with costs agreed before any work begins.
Read more about James Leslie and how Brechin Sparks approaches electrical work, from the first enquiry to explaining the completed job.
BS 7671 wiring regulations
Level 3 Award · BS 7671 wiring regulations
Cover for electrical work
Local service across a 40-mile radius
Engineering experience behind the advice
A background in serving the community
Before you buy a charger
Installing a smart electric vehicle (EV) charger involves adding a high-power, continuous load to your property’s electrical system. Running a 7kW charger for hours at a time requires proper circuit design, correct earthing, and surge protection. These are the four things James checks before quoting.

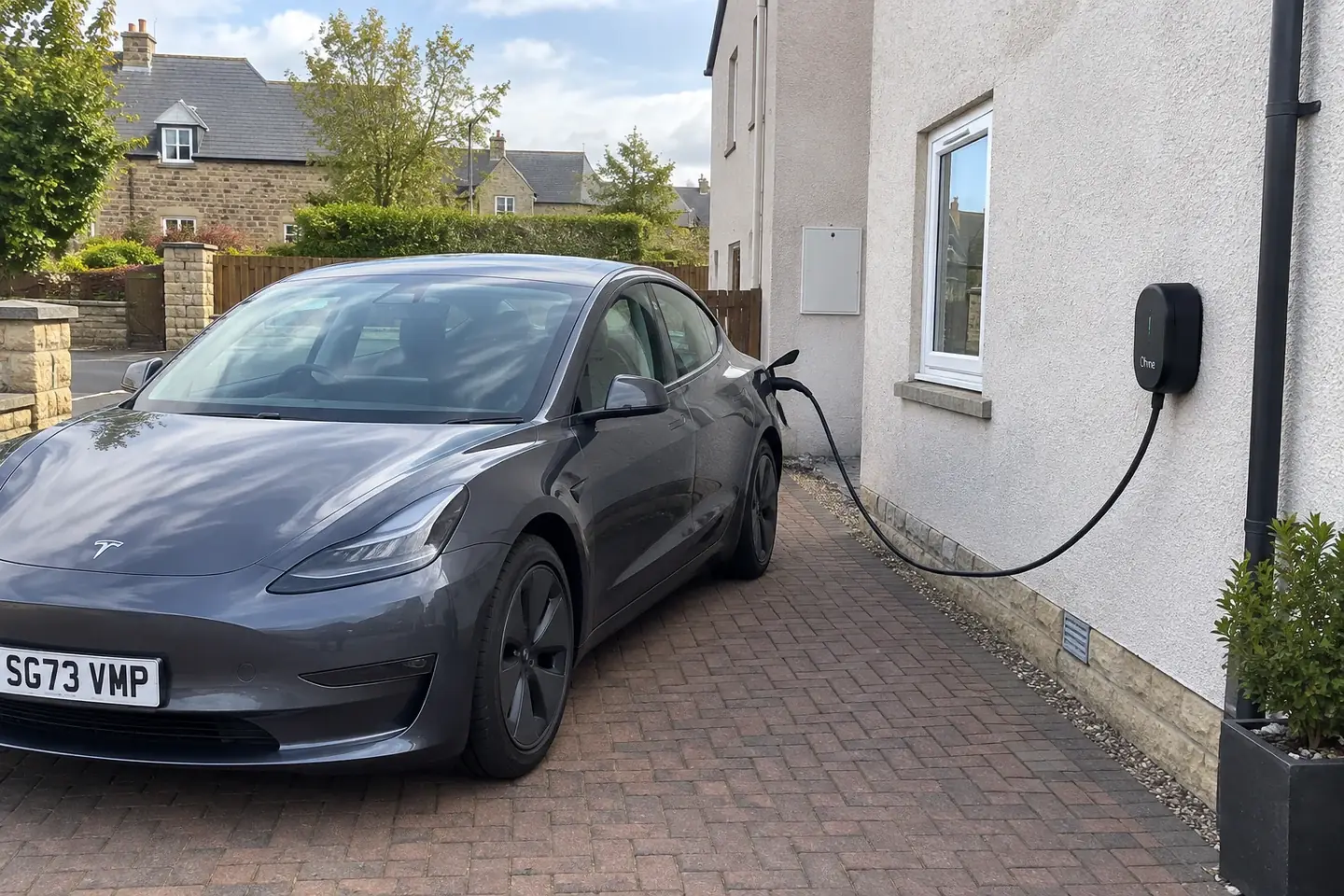

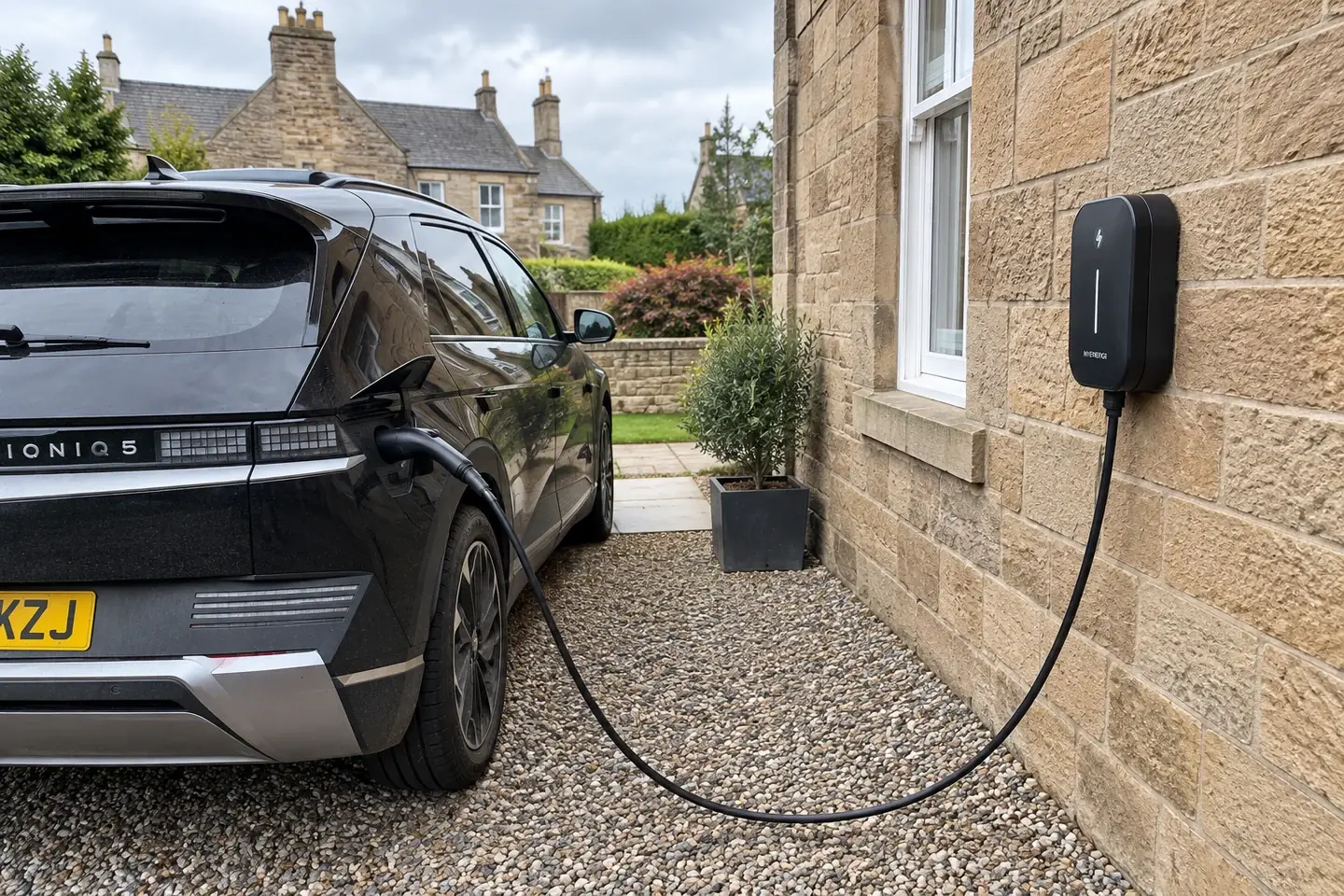

A driveway, carport or garage is the usual arrangement for a home wallbox. Any proposed cross-pavement solution needs the relevant local authority permissions and a suitable design.
Typically 60A, 80A or 100A. A typical single-phase 7kW charger draws around 32A, but ratings vary, so the existing supply has to carry it.
TN-C-S (PME) or TT changes the protection required, including whether Open-PEN protection applies.
The charger needs a dedicated circuit. If there are no spare ways, or RCD and surge protection need updating, that is quoted with the job.
Not sure what you have? Send a photo of your fuse box.
Get a quote
Chargepoint installation for homes, businesses and farms across Angus, including any consumer unit work the new circuit requires.

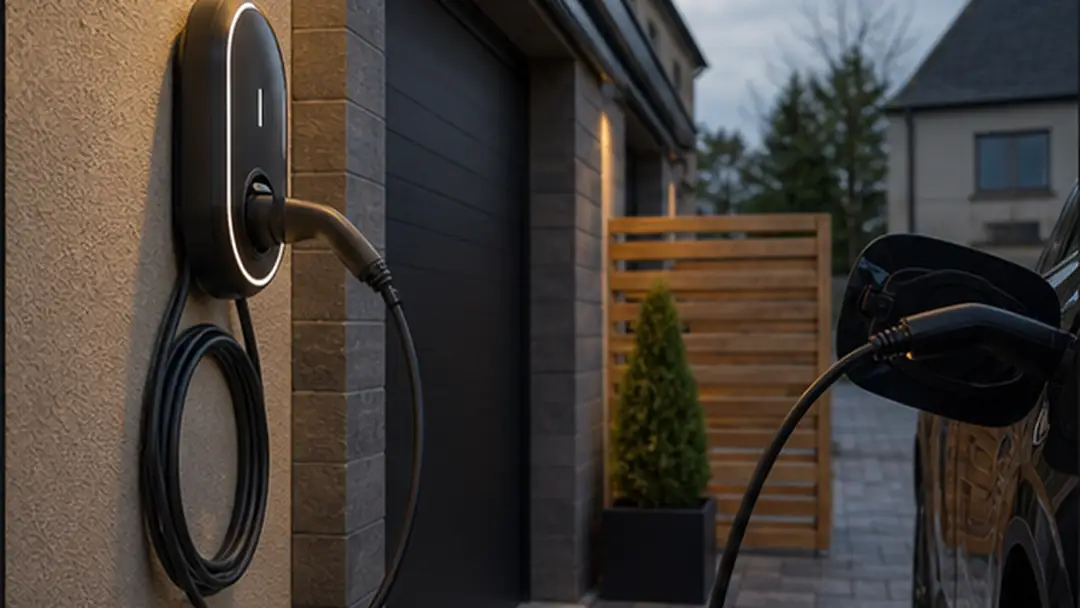

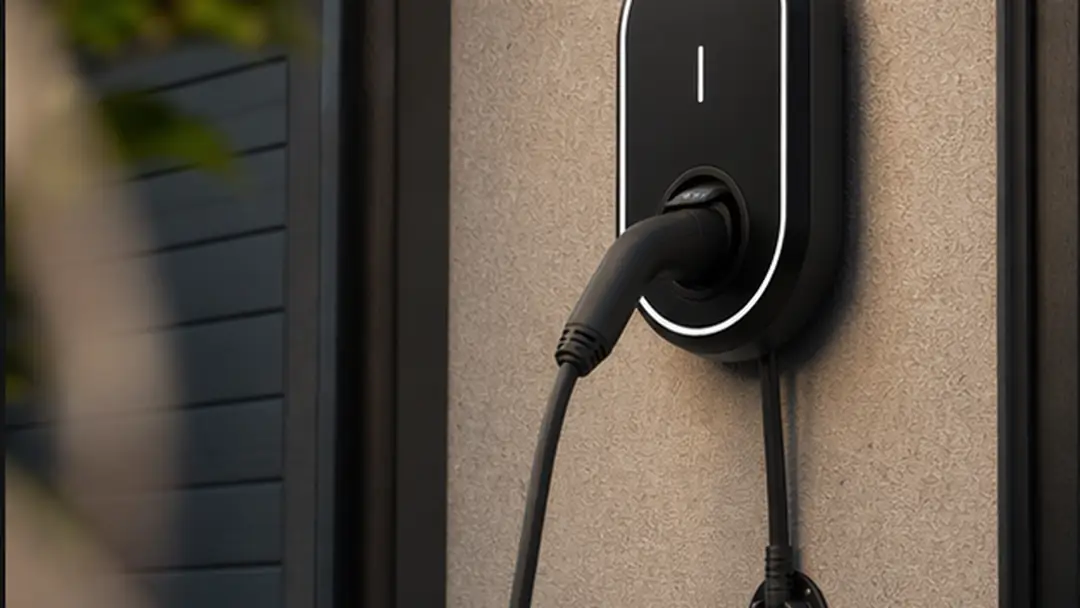

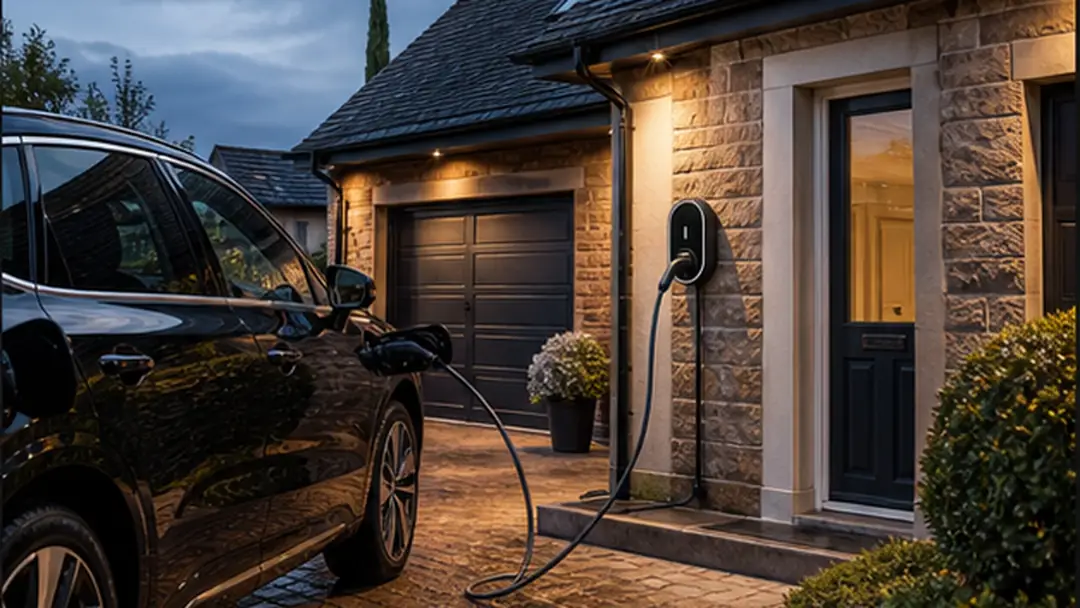

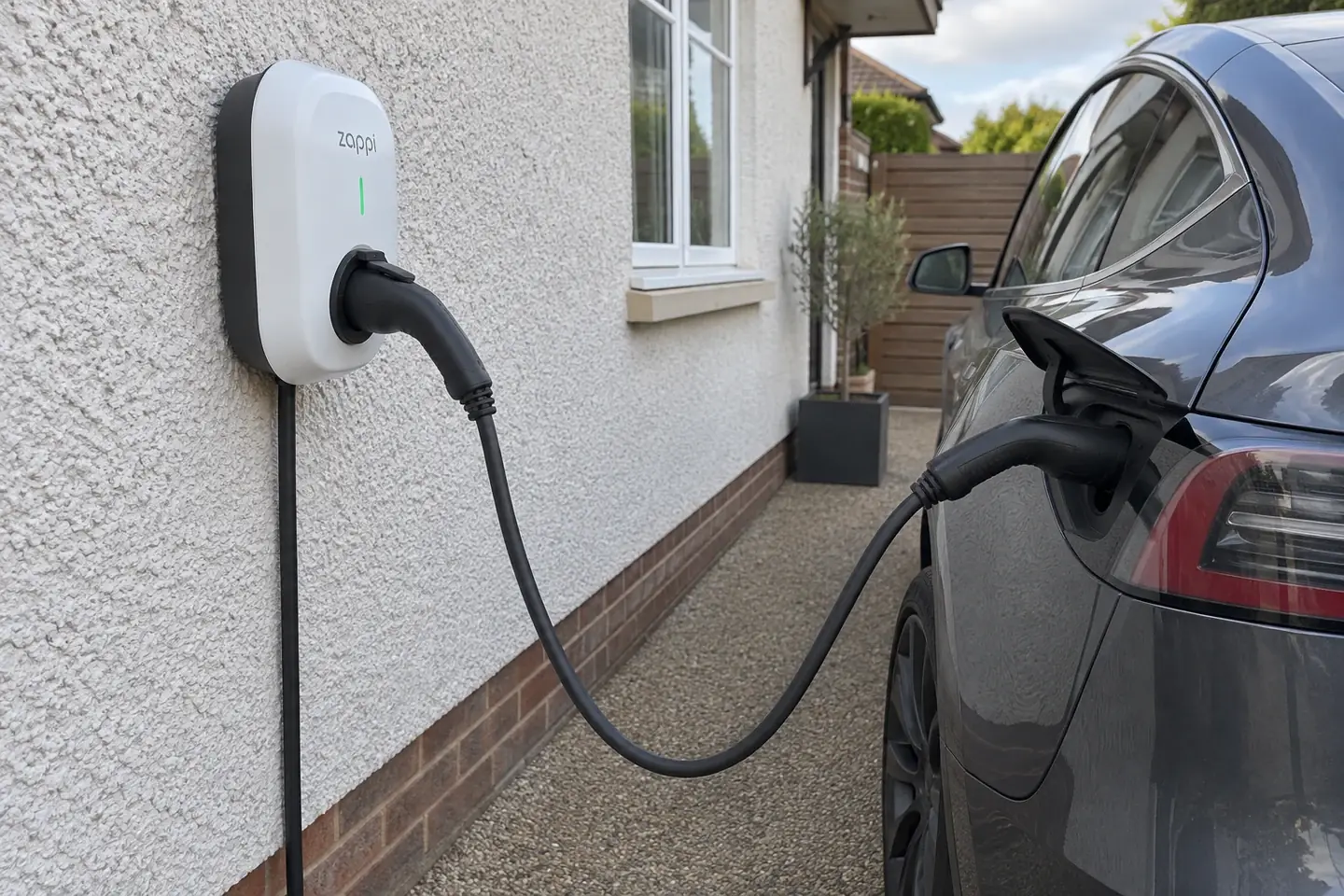

Wall-mounted 7kW fast chargers for off-street driveways, carports, and garages. Positioned where your cable reaches your vehicle conveniently, integrated with off-peak tariff controls for cheaper night-time charging.

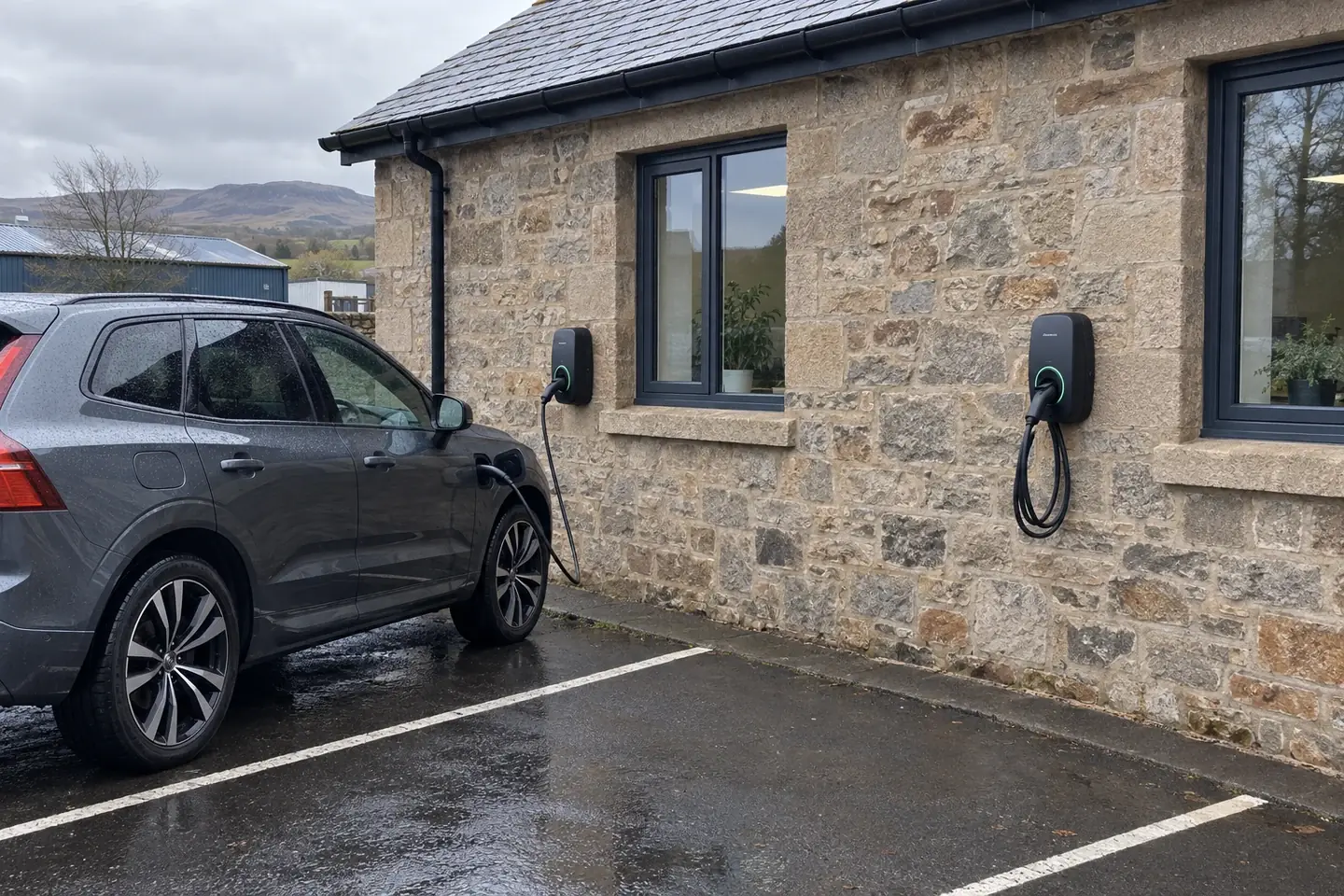

EV charger installations for offices, retail units, workshops, and agricultural premises across Angus. Multi-charger setups, dynamic load management, and durable outdoor fittings for staff and fleet vehicles.
If your existing fuse box lacks spare ways or requires updated RCD / Surge Protection (SPD) to support a dedicated EV circuit, we handle the board assessment and upgrades alongside the installation.
Guide prices
Prices depend on the distance from your fuse box to the charger, cable routing, mounting location, and whether your electrical supply requires an upgrade. All costs are agreed upon before work starts.
Cable run distance, consumer unit capacity, charger unit selection. Assessment of your parking area, fuse board, and preferred charger location.
Brand of smart charger (e.g., Zappi, Hypervolt, Wallbox), tethered vs. socketed. Quoted for your chosen hardware and installation scope.
Condition of existing fuse board, earthing bonding, and surge protection needed. Assessed during initial site visit if your board lacks spare capacity.
Indicative guide prices. The final scope and cost are agreed before work begins. Charger hardware is quoted for your chosen unit, and any consumer unit work is assessed during the initial site visit if your board lacks spare capacity.
See the full guide to electrical work prices for other jobs.
Installing a dedicated AC vehicle chargepoint includes supply assessment, circuit installation, testing and the required network application or notification:
Checking your main electrical fuse rating (e.g., 60A/80A/100A), earthing arrangements (TN-C-S / PME or TT), and consumer unit capacity.
Running heavy-duty cable from your consumer unit or a dedicated enclosure directly to the charger location.
Selecting RCD, DC fault-current protection, earthing and surge protection for the charger, supply and current installation requirements. Open-PEN protection is considered where applicable.
Testing the installed circuit, providing an Electrical Installation Certificate (EIC), and completing the required DNO application or notification. Some installations need approval before connection.
An installation is often planned alongside a consumer unit upgrade or surge protection. Multi-charger workplace and agricultural setups can also be quoted alongside three-phase electrical work.
On completion
An EV charger installation is a major electrical addition to your property. After every installation, James provides a complete technical documentation pack.
Official BS 7671 safety certificate confirming the circuit meets current 18th Edition standards.
Confirmation of the applicable network application or notification for the installation.
Explanation of how the charger works, cable handling, and smart charging app integration.
Based in Brechin, Angus, Scotland, covering the DD9 postcode area and the wider Angus towns within an approximate 40-mile radius. Give James your postcode to confirm availability.
From the town centre to Trinity and Cookston. Our base, so usually the quickest to arrange.
Homes, workplaces and business premises across the Angus towns.
Domestic and workplace chargepoints, including surrounding rural properties.
Enquiries welcome for houses, flats and rented properties.
Call with your postcode to check coverage within the approximate 40-mile service area.
Full list of towns on the areas covered page.
Off-street parking is the usual arrangement for a home wallbox. If you park on the street, any proposed cross-pavement solution needs the relevant local authority permissions and a suitable design. Do not assume that a cable can be trailed over a public pavement.
It depends on your current consumer unit, supply capacity and chosen charger. A typical single-phase 7kW charger draws around 32A, but ratings vary. James will assess capacity, circuit protection and any load-management requirements.
A tethered charger has a cable permanently attached to the wall unit, so you simply plug it straight into your car. A socketed charger has an open plug socket, requiring you to plug in your own separate charging cable.
Yes. The installation must follow the DNO application or notification process. Depending on the existing supply and proposed demand, approval may be needed before connection. James discusses the applicable process for your installation.
A standard home installation typically takes between 3 to 5 hours, depending on cable routes and access. Power will need to be isolated briefly while connections to the main supply are completed.
Yes. Smart chargers (such as Myenergi Zappi units) can be integrated with existing solar PV systems or home storage batteries, allowing you to charge your vehicle directly from surplus solar energy generated during daylight hours.
What size cable for lights, sockets, a cooker, an electric shower or an EV charger: a UK chart of typical sizes, a finder, and why length and insulation matter.
Give your address, where you park and which charger you have in mind. James assesses your supply and earthing before confirming a price.
